professional solution for processing medium hard wood strip, mdf strip, hdf strip, floor, doors, solid wood furniture and square boards.

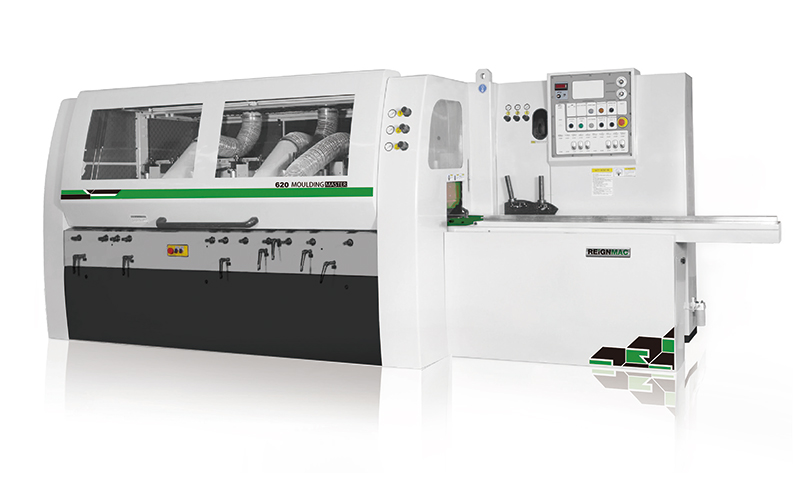

four-side moulder series m20

four-side moulder series m20
  • technical parameter
  • product characterist
  • details
product characteristics: professional solution for processing medium hard wood strip, mdf strip, hdf strip, floor, doors, sol

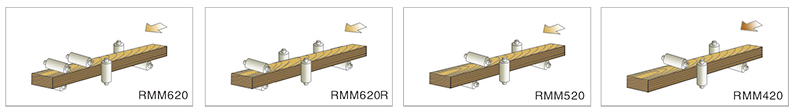

 specification & typermm620rmm620rrmm520rmm420
working width (mm)min.20202020
max.200200200200
working thickness (mm)min.8888
max.120120120120
number of spindles6654
speed of spindle (r/min)6000600060006000
cutting circle(max~min)(mm)first bottom spindleφ110 - φ145φ110 - φ145φ110 - φ145φ110 - φ145
right side spindleφ110 - φ180φ110 - φ180φ110 - φ180φ110 - φ180
left side spindleφ110 - φ180φ110 - φ180φ110 - φ180φ110 - φ180
second right spindle-----φ110 - φ180----------
first top spindleφ110 - φ180φ110 - φ180φ110 - φ180φ110 - φ180
second top spindleφ110 - φ180---------------
second bottom spindleφ110 - φ180φ110 ~ φ180φ110 ~ φ180-----
spindle diameter (mm)φ40φ40φ40φ40
basic motor power (kw)first bottom spindle5.5 kw/7.5hp5.5kw/7.5hp5.5 kw/7.5hp5.5 kw/7.5hp
right side spindle4 kw/5.5hp4kw/5.5hp4 kw/5.5hp4 kw/5.5hp
left side spindle4 kw/5.5hp4kw/5.5hp4 kw/5.5hp4 kw/5.5hp
second right spindle-----5.5kw/7.5hp----------
first top spindle5.5kw/7.5hp5.5kw/7.5hp5.5kw/7.5hp5.5kw/7.5hp
second top spindle5.5 kw/7.5hp---------------
second bottom spindle5.5kw/7.5hp5.5kw/7.5hp5.5kw/7.5hp-----
feed4kw/5.5hp4kw/5.5hp3kw/4hp3kw/4hp
feed beamrise & fall1.1kw/1.5hp1.1kw/1.5hp1.1kw/1.5hp1.1kw/1.5hp
total motor power(kw)35.1kw/48hp35.1kw/48hp28.6kw/39hp23.1kw/31.5hp
feed speed (m/min) (inveter for feed)6-306-306-306-24
dust outlet diameter(mm)φ130φ130φ130φ130
overall machine dimensions (l×w×h) (mm)4150×1650×17004080×1650×17003670×1650×17003350×1650×1700
weight(tons approx)43.83.53

note:any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing all the time.
