note:any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing all the time.

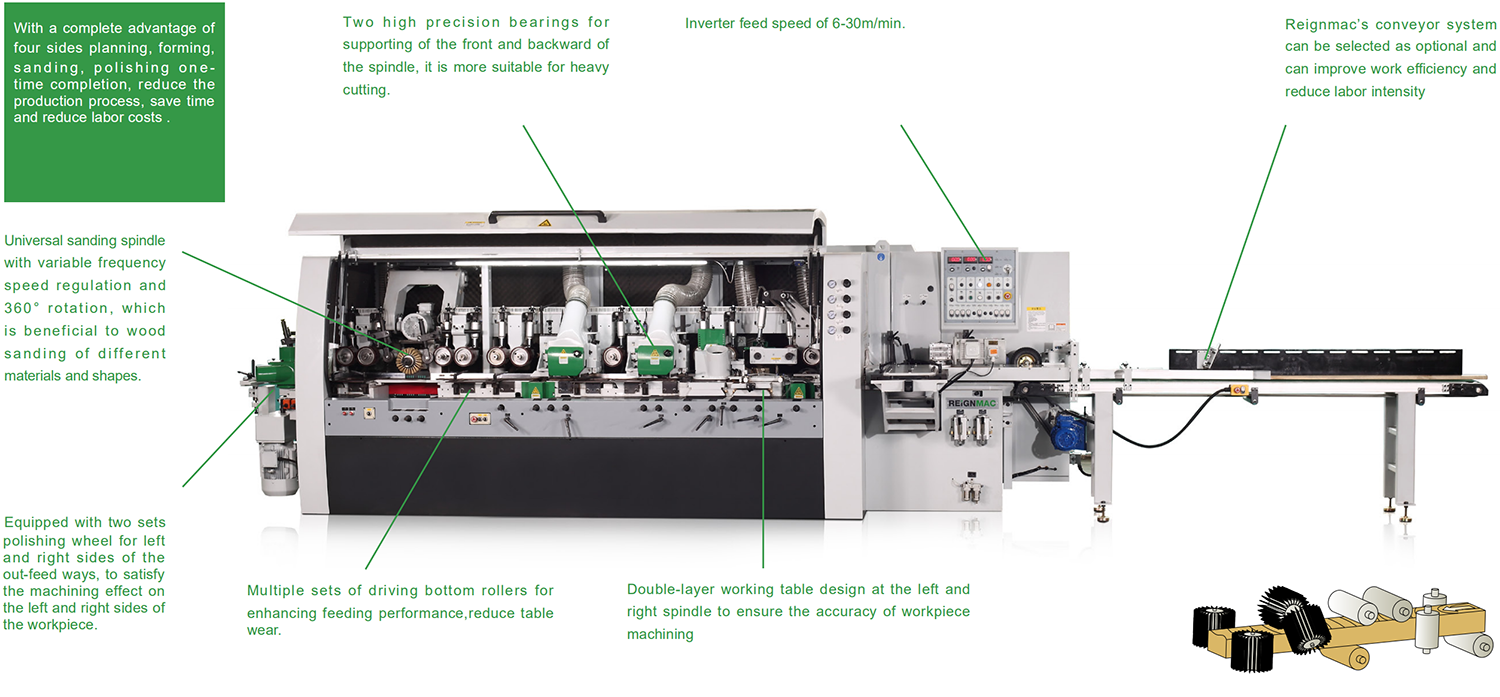

rmm723u s with sanding function four-side moulder excellent properties:

1. with a complete advantage of four sides planning, forming , sanding, polishing one-time completion, reduce the production process, save time and reduce labor costs.

2. with frequency control, and can be rotated for 360 ° universal spindle, is conducive to different materials, shapes of the wood line sanding processing.

3. machine is equipped with two sets sanding wheel for left and right sides of out-feed way, to meet the processing effect to process the left and right sides of the workpieces.

4. inverter feed speed of 6-30m/min.

5. individual motor to each spindle to ensure maximum power transmission.

6. high precision spindle units with two pairs of high precision bearings each end of the assembly.

7. all main spindle adjustments are carried out from outside the enclosure.

8. electroplating worktable, good wear resistance.

9. the left and right spindles are designed to adopts double layer working table, more reliable and effective to ensure that both sides of the workpieces’ straightness.

10. chain-wheel box is equipped for advancing feeding performance.

11. a group of side pressure wheels on the right side of left spindle, adjust the pressure flexible by pneumatic.

12. short pieces device with pneumatic double-direction (press and raise), can make the workpieces feeding or back in anytime.

13. pneumatic pressure loading to top feed rollers separately adjustable, for easy to feed stock with variation in thickness.

14. multiple sets of driving bed rollers for enhancing feeding performance.

15. adjustable out-feed side pressure board which can more satisfy the smoothly output of different thickness of the woodpieces.

16. manual oil pump lubrication for working table and saddle, it is convenience for control.

17. adopting electric components from international class with stable quality.

18. sealed safety enclose to reduce noise levels, improve extraction and operator safety.

19. it can equip with reignmac’s conveyor system to improve work efficiency and reduce labor intensity.

note:any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing all the time.

professional solution for one-time planing, shaping, sanding, polishing processing of mdf strip, wood strip from semi-finished product .
